Yamaha Boats

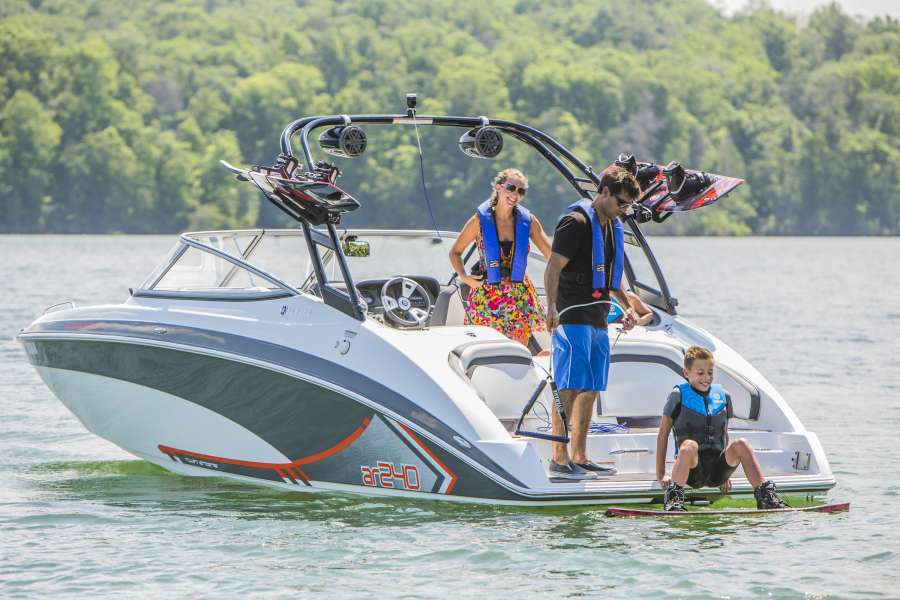

The Yamaha AR240 adds bold graphics and a tow-sports tower to the base SX240 model.Four new sport boat models from Yamaha address age-old jet power problems.

The all-new 240 Series sport boats from Yamaha successfully address two performance issues long associated with jet-powered runabouts: noise in the cockpit and wandering at no-wake speeds. The improvements are so dramatic that the boats’ other new features and updated details seem like icing on the cake.

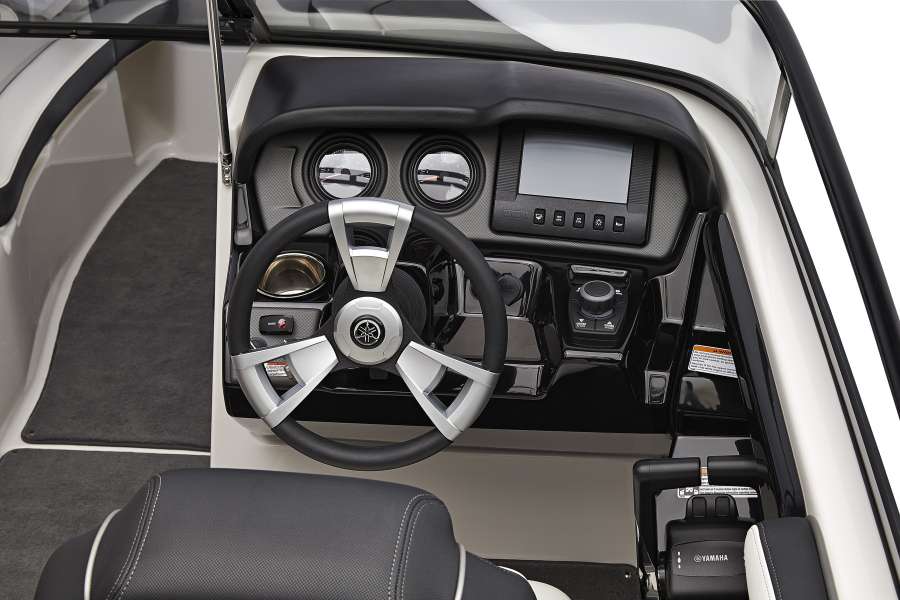

The new 240 Series includes four models that are based on a new 24-foot hull form that’s six inches longer and has higher freeboard from bow to stern. The base model is the SX240 (, 499), while the AR240 (, 499) adds a tow-sports tower and flashy graphics.All Yamaha 240 Series models feature a new dash with Connext touch-screen display. Further upscale are the 242 Limited (, 499) and tower-equipped 242 Limited S (, 499). All prices include a trailer.

A pair of Yamaha 1.8-liter, 180-horsepower, four-cylinder engines power all models, each mated to a Yamaha jet pump—the same powertrain that propelled previous 240 Series boats. The new boats weigh about 255 pounds more than the models they replace.

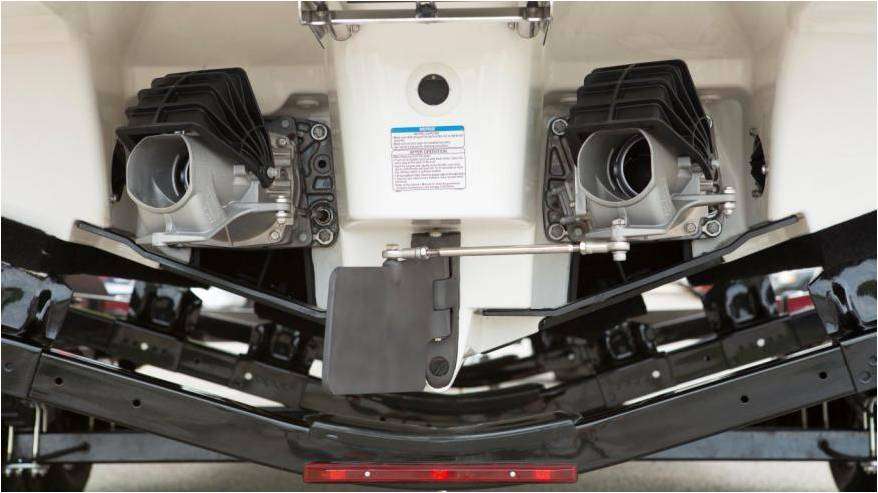

The cast-aluminum “articulated keel extension” steers with the jet nozzles and continues the shape of the hull’s dihedral keel.Sound Improvement

The noise level in previous Yamaha boats—made worse by the high pitch—was so bad that it was all but impossible to have a conversation in the cockpit, even at cruising speeds. The new 240 Series boats are as quiet as any sterndrive-powered runabout I’ve tested, and the decibel meter proves it.

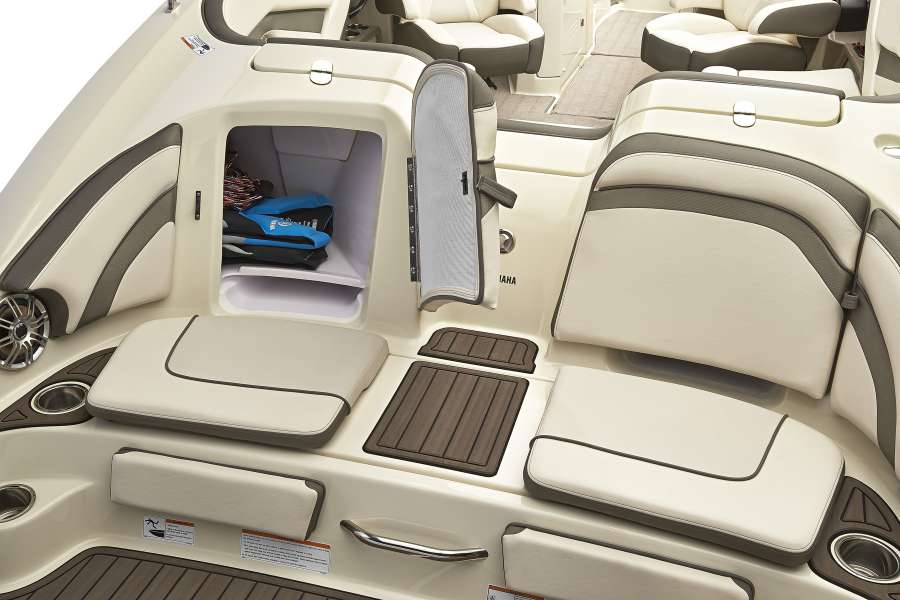

Here’s a comparison of the last Yamaha 240 model I tested against the preproduction 2015 AR240 I ran this August: At 2400 rpm (no-wake speed) I recorded 75 dBA for the old model, compared to 66 dBA for the 2015 model.The Yamaha 242 Limited features teak-look matting and upgraded upholstery. New wet gear compartments are a feature of all 240 Series models. Ramping the engines up to 5500 rpm (31 mph) produced 92 dBA and 88 dBA for the old and new models, respectively. Lastly, at 6500 rpm (40 mph), the old model produced 97 dBA, while the new boat came in at 92 dBA. On the logarithmic decibel scale, a three-decibel change is roughly twice as loud, or half as quiet, as the point of comparison. In layman’s terms, new Yamaha 240 boats are dramatically quieter than the previous models.

Yamaha did some easy things to reduce the noise, such as placing thicker insulation under the engine hatch and doing a better job of sealing the engine bay. More challenging was developing a new material for the coupler between the engines and jet drive shafts and redesigning the shape of the jet pump inlets to reduce turbulence. Even the placement of the adhesive that bonds the liner to the hull and the liner design itself were fine-tuned to limit resonance of engine and pump noise through the hull.

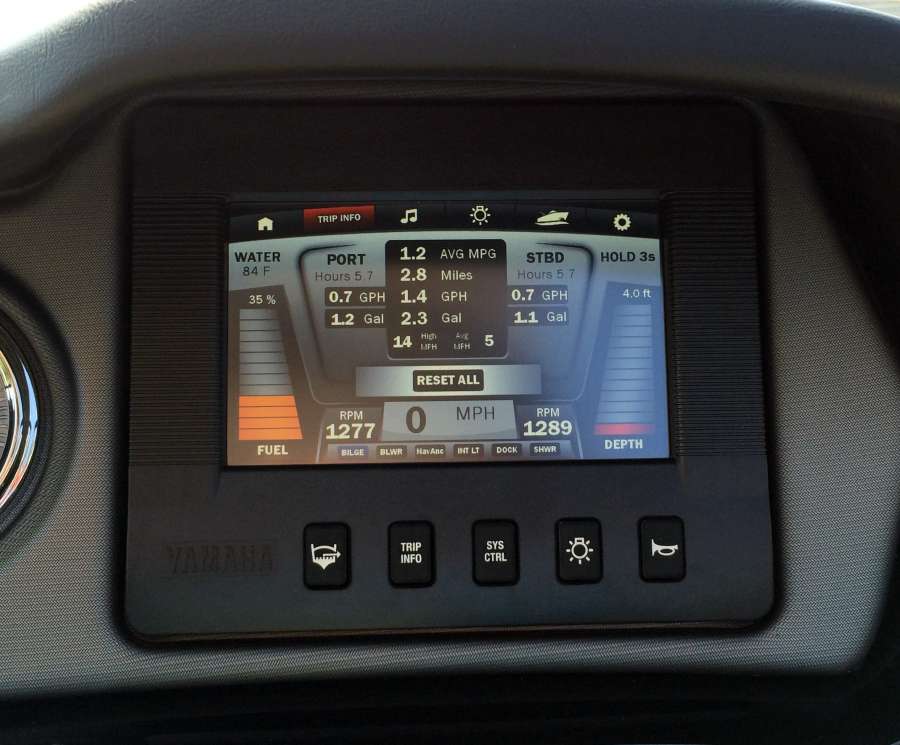

The Connext screen combines the functions of switches, gauges, and audio controls into a single unit, with a joystick to control top-level functions. All Yamaha 240 Series models feature a signature transom design that incorporates a lounge area and places the swim platform just above water level. Can speakers and board racks on the tower are optional.
